Value Stream Mapping (VSM)
Value Stream Mapping is a powerful methodology that visualizes and analyzes the flow of materials and information required to bring a product or service to a customer.
This lean-management method is derived from the manufacturing industry but has been successfully adapted for use in various service sectors as well. By illustrating the current processes and forecasting more efficient futures, value stream mapping offers a holistic approach to operational improvement.
The importance of value stream mapping in manufacturing cannot be overstated. It is crucial in identifying waste, reducing process complexities, and ensuring that the value chain directly contributes to customer satisfaction and business profitability. Similarly, in service industries, VSM helps streamline operations and enhance service delivery by revealing unnecessary steps and highlighting areas for improvement.
This blog will guide you through the critical steps of VSM, demonstrating how it helps in optimizing both resources and workflow. You will learn about the benefits of VSM, explore the standard VSM method, and gain insights into effectively applying value stream mapping techniques in your own business context. Whether you are new to this methodology or looking to refine your approach, this comprehensive blog will provide valuable perspectives on making the most of VSM to enhance operational efficiency and effectiveness.
Understanding Value Stream Mapping
Value Stream Mapping is a technique used to visualize, analyze, and improve the flow of materials and information required to bring a product or service from its initial stage to the customer. This methodology originated in the manufacturing sector as a core component of the Toyota Production System, which focused on eliminating waste and optimizing productivity. Over time, value stream mapping has evolved into a versatile tool applicable across various industries, significantly enhancing operational insights and efficiency.
Historical Context and Development of VSM
The development of VSM can be traced back to the lean manufacturing principles that emerged in Japan during the late 20th century. It was initially developed to improve manufacturing processes by visualizing the steps involved in material and information flows. The method has since transcended its origins, adapting to the complexities of service industries and digital operations. This adaptability has expanded the benefits of VSM, making it a fundamental approach for businesses seeking to implement lean methodologies.
Key Components of a Value Stream Map

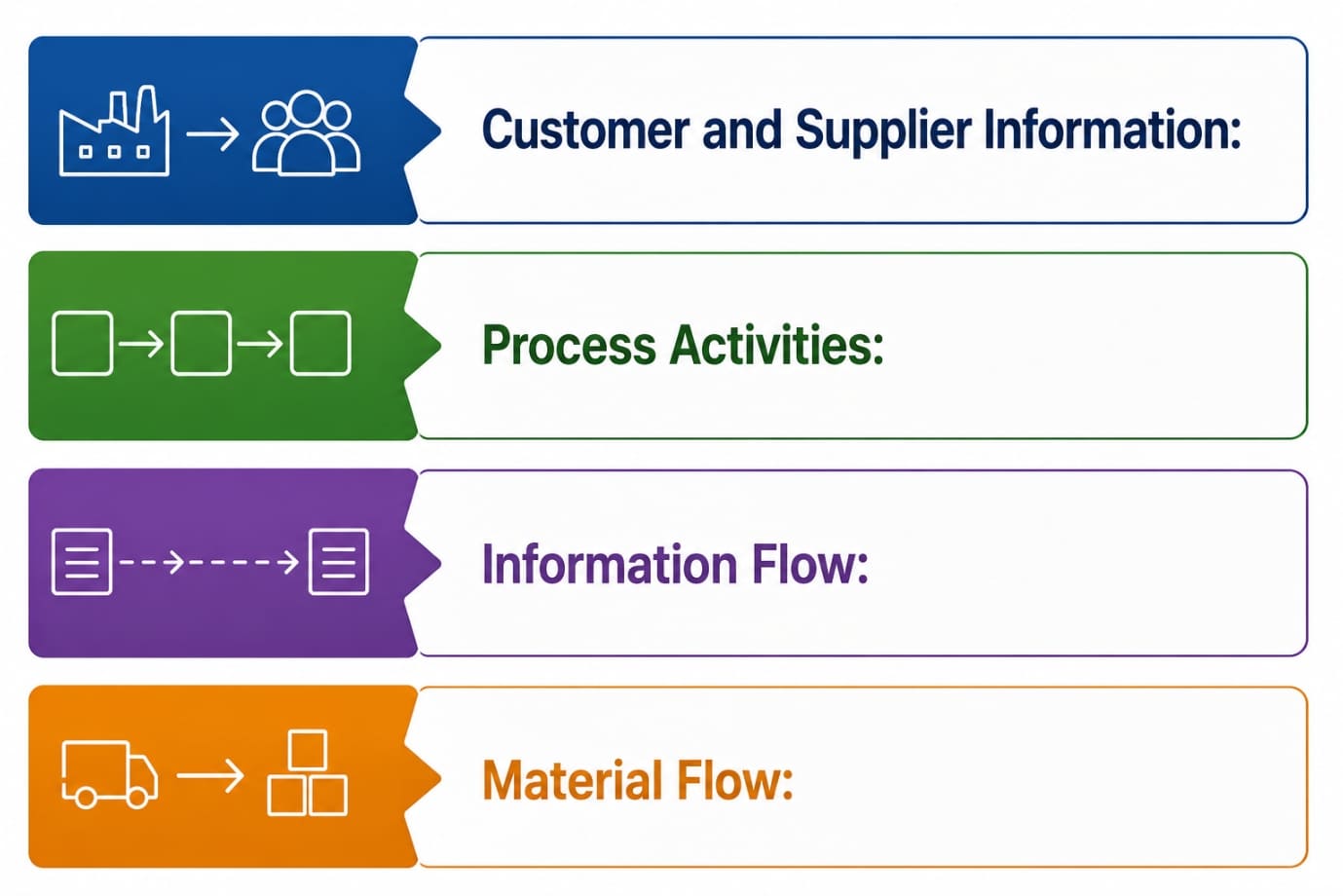

A comprehensive value stream map includes several critical components that collectively offer a snapshot of the entire process from start to finish. Understanding these components is essential to effectively utilize the VSM method.
- Customer and Supplier Information: This includes details about the customers and suppliers that interact with the process. Understanding the demands of the customer and the capabilities of the supplier is crucial for optimizing outputs and ensuring that every step adds value.
- Process Activities: These are the actions taken to transform raw materials into finished products or to complete a service. Mapping these activities helps in identifying non-value-added steps (waste), which are targets for improvement.
- Information Flow: This involves how information travels through the organization, from order taking to delivery. Effective value stream mapping identifies bottlenecks in information flow that could delay production or delivery, highlighting areas for improvement.
- Material Flow: This tracks the movement of materials from the supplier through the various stages of processing to the final customer. Efficient material flow is essential for minimizing inventory costs and reducing cycle times.
By integrating these elements, value stream mapping in manufacturing and services helps in pinpointing inefficiencies and planning for a streamlined, waste-reduced process. The steps of VSM guide teams through creating a current state map, analyzing it to identify opportunities for improvement, and then designing a future state map that implements these enhancements.
Overall, understanding and applying VSM can transform an organization’s operations, leading to significant benefits such as reduced costs, faster lead times, and improved product quality and customer satisfaction.
Benefits of VSM (Value Stream Mapping)

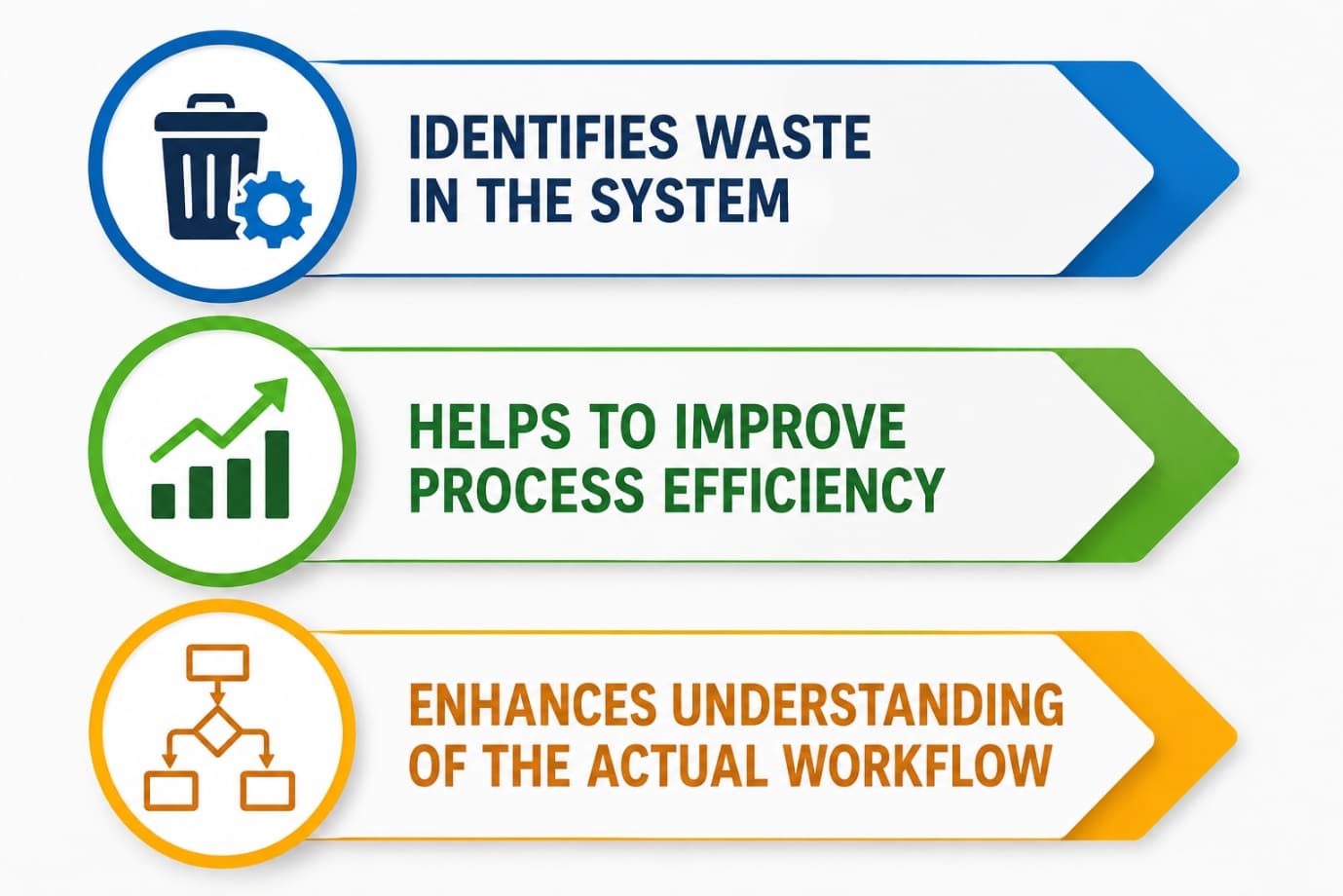

Value Stream Mapping serves as a vital tool within both manufacturing and service sectors, promoting significant enhancements in process transparency and efficiency. Utilizing VSM methodology not only streamlines operations but also provides profound insights into the inner workings of business processes. Here, we explore the key benefits of VSM and explain why it is an indispensable method for organizations aiming to optimize their workflows.
- Identifies Waste in the System: One of the primary benefits of VSM is its ability to pinpoint waste within a system. Waste, in the context of value stream mapping, refers to any activity that consumes resources but does not add value to the customer. This can include overproduction, waiting times, unnecessary transport, excessive processing, inventory excess, unnecessary motion, and defects. By mapping out the current state of the process, VSM highlights these areas and provides a clear visual representation of where resources are being misused. This visualization is crucial as it forms the basis for developing more streamlined future state maps that significantly reduce waste.
- Helps to Improve Process Efficiency: Value Stream Mapping plays a crucial role in enhancing process efficiency. Through detailed analysis of the current state, VSM allows organizations to design a more efficient future state that aligns more closely with their operational goals. This process involves reevaluating the steps, sequences, and flows of materials and information to ensure that every action adds value to the final product or service. By implementing the improvements identified during VSM, companies can reduce cycle times, enhance throughput, and optimize overall process flow. This efficiency gain not only reduces costs but also improves productivity and competitive advantage.
- Enhances Understanding of the Actual Workflow: Another significant advantage of value stream mapping is that it deepens stakeholders' understanding of the actual workflows. VSM provides a unique, high-level view of operations, crossing departmental boundaries and highlighting interdependencies. This comprehensive perspective is often enlightening for management and operational teams, as it reveals the impact of each component of the process on others. Enhanced understanding fosters better decision-making, supports effective change management, and helps align the team towards common goals.
By incorporating value stream mapping in manufacturing and service operations, businesses can leverage these benefits to not only identify and eliminate inefficiencies but also to create a culture of continuous improvement. The steps of VSM guide teams through a thoughtful examination of their processes, encouraging a methodical approach to enhancement that is both strategic and data-driven. Ultimately, VSM not only helps in reducing operational costs and improving quality but also ensures that the process is as customer-centric as possible, delivering maximum value at minimum expense.
The Process of Value Stream Mapping
Value Stream Mapping is crucial for enhancing operational efficiencies by visually depicting the flow of materials and information. The steps of VSM are designed to be universally applicable, whether in manufacturing or service sectors. This section provides in-depth steps to execute value stream mapping, including necessary tools and resources, and offers tips for effective VSM.

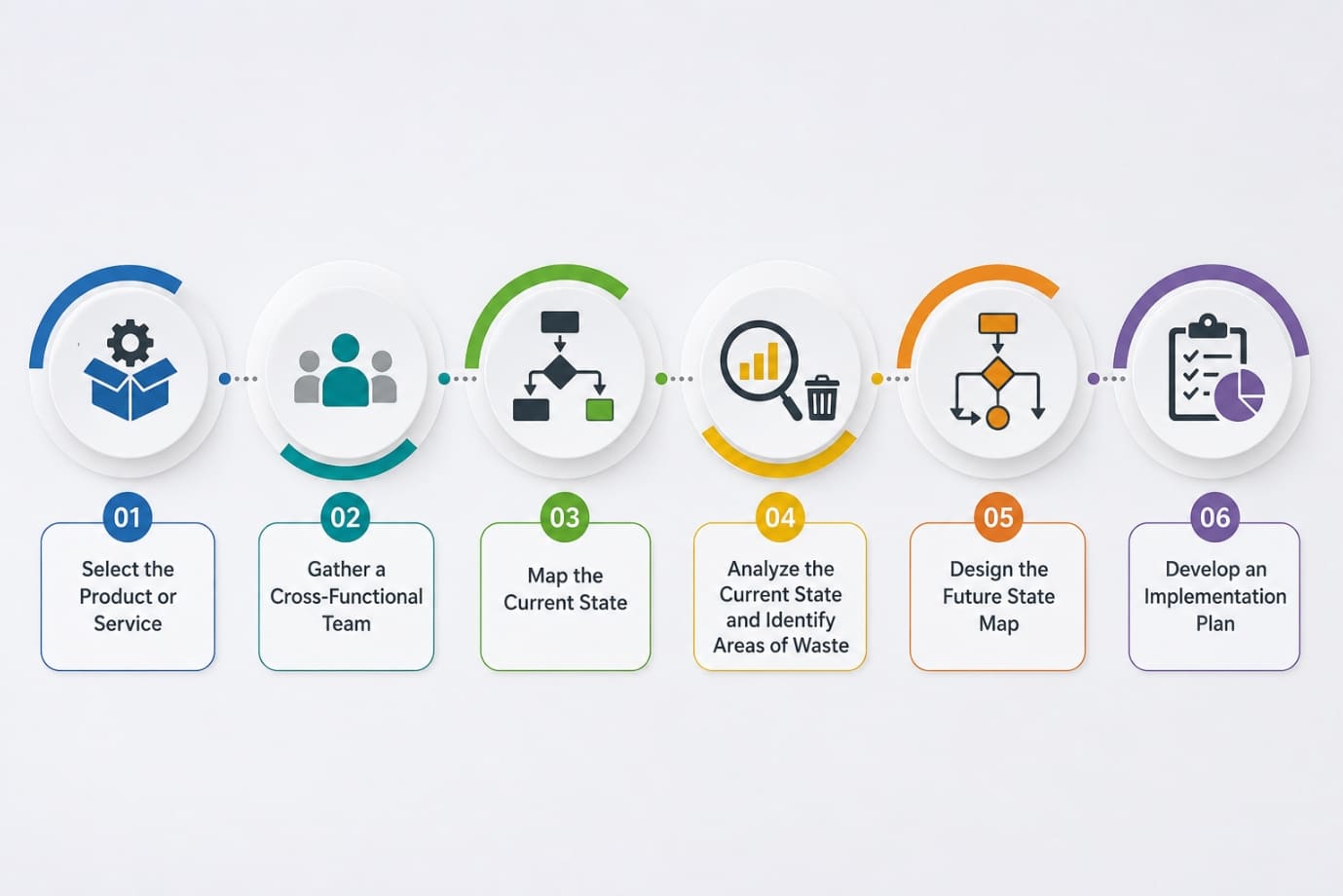

- Steps to create a Value Stream Map:
- Select the Product or Service: Initiate the value stream mapping process by selecting a specific product or service. This focus helps in keeping the VSM process targeted and efficient.
- Gather a Cross-Functional Team: Form a diverse team for the VSM process, pulling in professionals from production, quality control, logistics, and customer service to provide a broad range of insights necessary for effective value stream mapping.
- Map the Current State: Collaboratively map out all activities in the current workflow, capturing every step from initial customer interaction to final delivery, documenting both material and information flows. This is a critical step in the VSM method.
- Analyze the Current State and Identify Areas of Waste: Analyze the current state map to pinpoint inefficiencies—typically areas where time or resources are used without adding value—critical for optimizing the VSM process.
- Design the Future State Map: Utilize the insights gained from the current state analysis to design a future state map that eliminates waste and optimizes process flow, an essential step in leveraging value stream mapping for efficiency.
- Develop an Implementation Plan: Develop a comprehensive implementation plan to transition from the current to the future state, detailing goals, resource assignments, timelines, and responsibilities essential for VSM.
- Tools and Resources Needed for VSM:
- Mapping Software: Employ VSM software like Lucidchart, Microsoft Visio, or other specialized tools to aid in creating precise and clear value stream maps.
- Data Collection Tools: Implement tools to collect detailed data on cycle times, waiting periods, and individual process steps, all crucial for effective value stream mapping.
- Workshops and Training Materials: Provide training on VSM techniques and continuous improvement strategies to ensure everyone involved is equipped for successful value stream mapping.
- Tips for Effective Mapping:
- Involve All Stakeholders: Ensure full engagement from all parties involved in the process to enhance the effectiveness of the VSM and gather a wide range of insights.
- Focus on Customer Value: Always prioritize modifications that enhance value to your customers, a central tenet of value stream mapping that leads to significant competitive advantages.
- Keep it Simple: Begin with straightforward, easy-to-implement improvements, gradually advancing to more complex issues within the VSM process.
- Use a Pilot Approach: Pilot the future state map on a small scale to validate changes, adjusting the plan as necessary before widespread implementation, an effective strategy in value stream mapping.
By adhering to these structured steps, organizations can effectively utilize value stream mapping to significantly enhance their operational efficiency and productivity. The VSM process not only aids in identifying and eliminating waste but also provides a strategic framework for continuous and iterative improvements across various business settings.
Key Symbols and Notations in VSM
Mastering the symbols and notations used in Value Stream Mapping (VSM) is crucial for anyone involved in this methodology. These symbols help to standardize the VSM process, making the maps easier to understand and more effective in communicating the essential elements of the process flows. Below, we explore the common symbols used in VSM and offer tips on how to read a value stream map effectively.
Explanation of Common Symbols Used in VSM

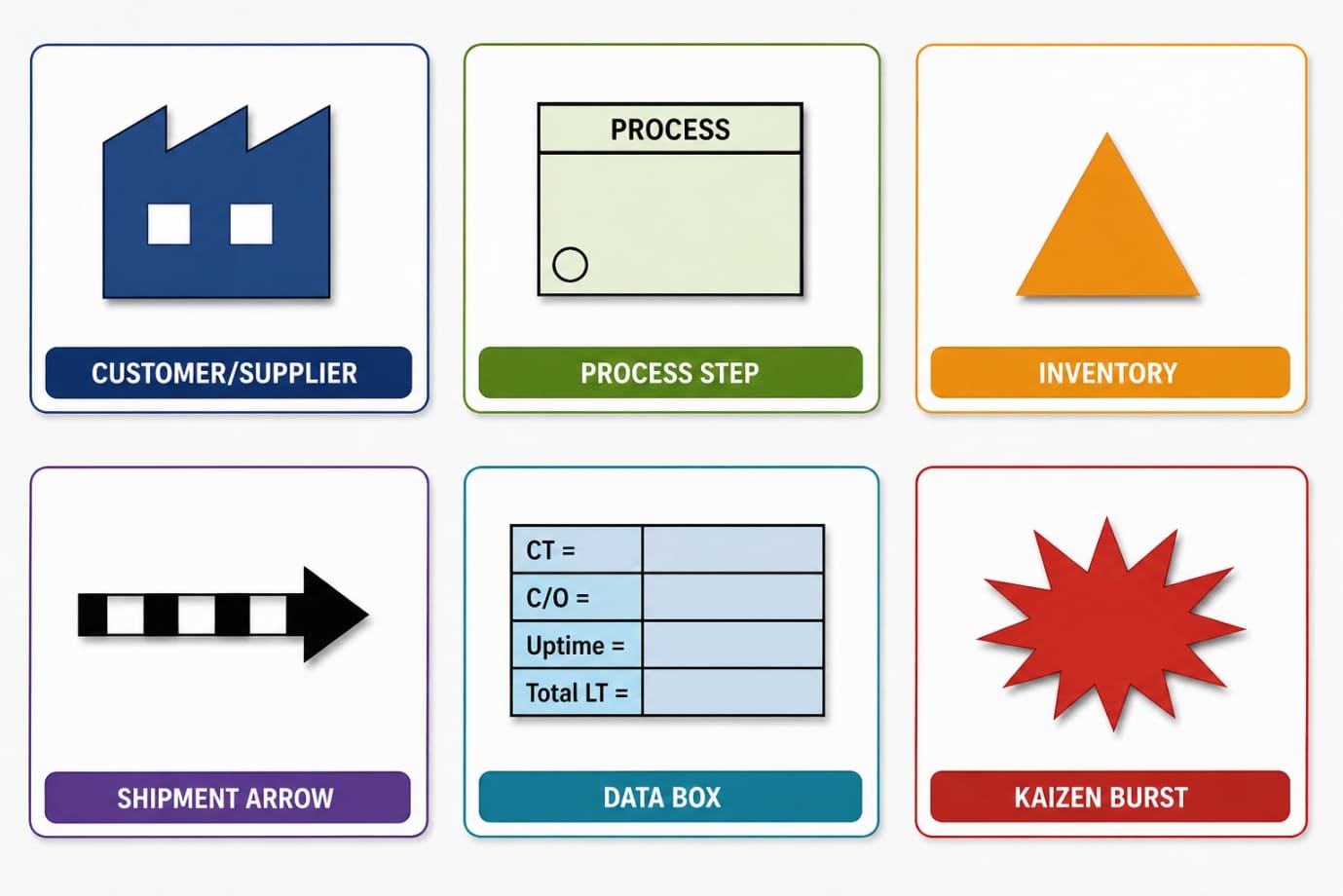

Value Stream Mapping employs a variety of standardized symbols to represent different types of process elements. Here are some of the most commonly used symbols in VSM:
- Customer/Supplier: This represents the external entities like customers or suppliers in the value stream map. It helps to identify the start and end points of the value stream.
- Process Step: A rectangle that is used to denote each step in a process. This symbol is critical as it shows the operations carried out and is often detailed with metrics such as cycle time and downtime.
- Inventory: These depict inventory between steps and are represented by triangles. Keeping track of inventory levels is essential for identifying waste associated with excess inventory in value stream mapping.
- Shipment Arrow: This arrow shows the flow of materials from suppliers and to customers, highlighting the transportation steps which are often areas to optimize in VSM.
- Data Box: This box typically accompanies other icons and contains data about each process step, such as cycle times, uptime, and the number of employees involved. These details are crucial for analysis in the VSM process.
- Kaizen Burst: This symbol looks like a cloud and marks spots within the process where potential improvements could be made, an integral aspect of the continuous improvement focus in value stream mapping.
How to Read a Value Stream Map Effectively
Reading a value stream map effectively involves more than understanding what each symbol represents; it also requires a grasp of the flow and interaction between these elements. Here’s how to do it:
- Start at the Customer: Begin reading the map from the customer's end and trace the process back to the raw materials. This perspective helps focus on delivering value from the customer's viewpoint, a core principle of VSM.
- Identify the Flows: Pay attention to both the material and information flows. Material flows are usually indicated by solid lines, while information flows might use dashed lines.
- Analyze the Data Boxes: Look at the data provided in the boxes at each step. This data can tell you a lot about the efficiency of each process and is key to identifying bottlenecks and waste.
- Look for Kaizen Bursts: These indicate areas ripe for improvement. Focusing on these can significantly enhance the benefits of VSM by reducing waste and increasing overall efficiency.
Understanding these symbols and how they interact within a value stream map is essential for anyone using this methodology to improve value stream mapping in manufacturing or any other sector. This knowledge not only helps in effectively creating the VSM, but it also aids in communicating the current and future state maps to stakeholders, ensuring alignment and facilitating successful implementation of improvements.
Common Challenges and Solutions in Value Stream Mapping
Value Stream Mapping is a transformative tool that can significantly enhance organizational efficiency and productivity. However, during the implementation of value stream mapping, teams often encounter specific challenges that can hinder the effectiveness of the process. Understanding these challenges and knowing how to address them is crucial for sustaining the benefits of VSM. Here, we outline some common issues encountered during value stream mapping in manufacturing and other sectors, along with practical solutions and best practices for overcoming these obstacles and ensuring continuous improvement.

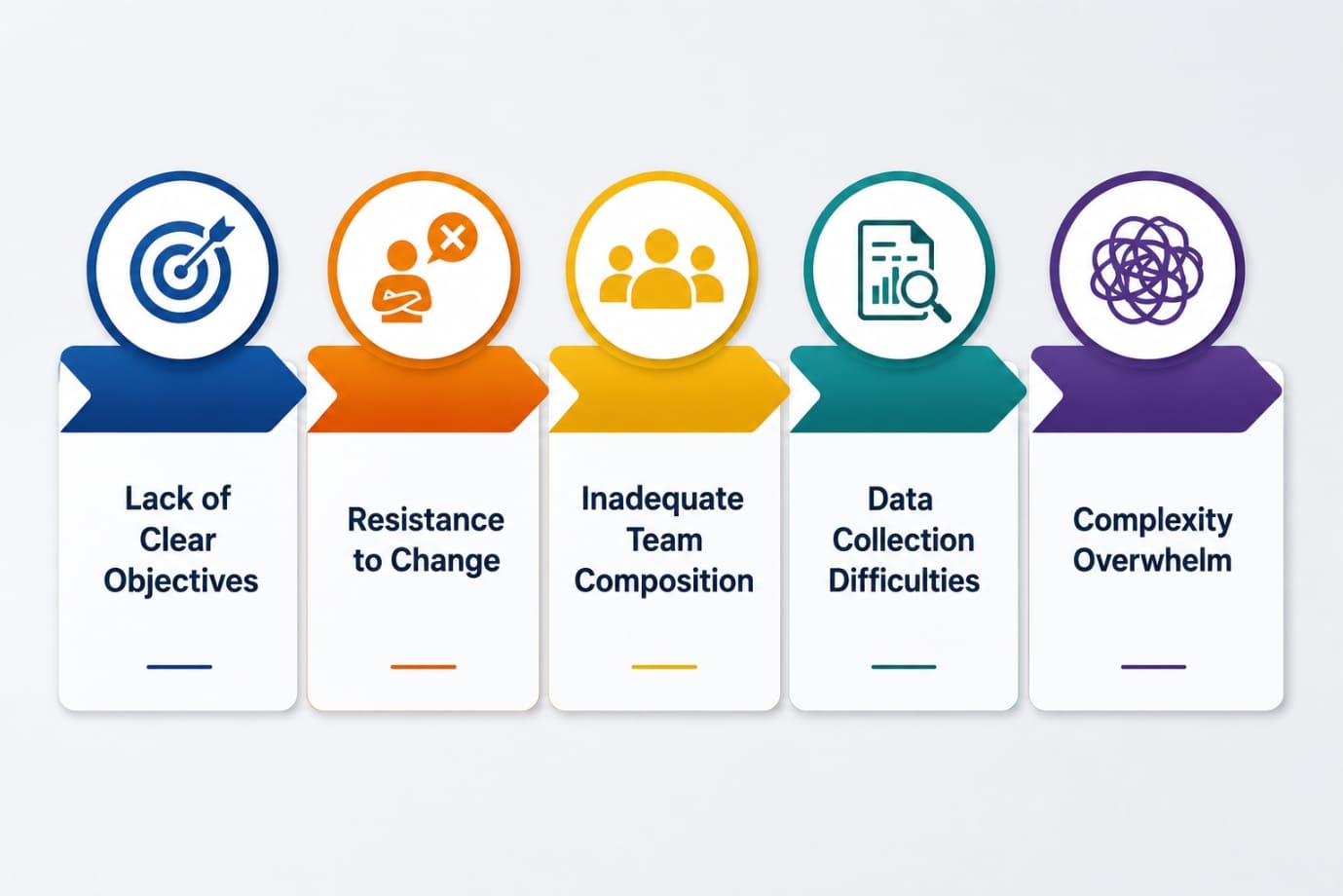

Typical Challenges Faced During the VSM Process
- Lack of Clear Objectives: Without clear goals, VSM efforts can become unfocused, which dilutes the potential improvements.
- Resistance to Change: Employees often resist changes, especially when they do not understand the benefits or fear that changes may threaten their jobs.
- Inadequate Team Composition: Not having the right mix of skills and perspectives in the VSM team can lead to oversights and incomplete analyses.
- Data Collection Difficulties: Accurate data collection is vital for effective value stream mapping, but obtaining reliable and comprehensive data can be challenging
- Complexity Overwhelm: In complex operations, managing and visualizing all the activities and flows can become overwhelming.
Solutions and Best Practices to Overcome These Challenges
- Set Specific, Measurable Goals: Begin the VSM process by defining clear, achievable objectives. This ensures that all efforts are aligned and focused on delivering tangible benefits of VSM.
- Engage and Educate Stakeholders: Mitigate resistance by involving employees in the value stream mapping process and educating them on the benefits. Highlight how VSM can make their work easier and more impactful rather than threatening their roles.
- Diversify the VSM Team: Include a variety of roles and departments in the VSM team. This diversity brings different insights and expertise, enhancing the analysis and design of the future state map.
- Standardize Data Collection Methods: Implement standardized procedures for data collection to ensure accuracy and completeness. Use tools and software that facilitate real-time data gathering and analysis.
- Break Down Complex Processes: Handle complexity by breaking down large-scale processes into smaller, manageable sections. Tackle each section individually to avoid overwhelm and maintain clarity in the value stream map.
Ensuring Continuous Improvement and Sustainability
To ensure the steps of VSM lead to sustainable improvements, continuous monitoring and adaptation are necessary:
- Regularly Update VSM: Periodically review and update the value stream map to reflect changes in the process or business environment. This keeps the map relevant and useful as an improvement tool.
- Establish KPIs: Develop key performance indicators (KPIs) related to the VSM goals. Regular tracking of these KPIs helps in measuring success and identifying areas for further improvement.
- Foster a Culture of Continuous Improvement: Promote a workplace culture that embraces regular review and refinement of processes. Encourage feedback and innovative thinking around process improvements.
- Leverage Technology: Use advanced software and technology to simplify the value stream mapping process and enhance the precision of your maps and data analysis.
By addressing these challenges with effective strategies and best practices, organizations can fully leverage the benefits of VSM. This approach not only improves the initial efforts of value stream mapping but also sets the stage for ongoing enhancements, ensuring that this methodology remains a dynamic and valuable tool for organizational development.
Integrating Technology with Value Stream Mapping
In the era of digital transformation, Value Stream Mapping has evolved to incorporate advanced technological tools that enhance its accuracy, efficiency, and impact. The integration of digital tools and software into VSM not only streamlines the process but also opens up new possibilities for deeper insights and more dynamic process improvements. This section explores the pivotal role of technology in VSM, highlights some popular VSM software, and discusses future trends, such as the integration of AI and machine learning into value stream mapping.
The Role of Digital Tools and Software in Enhancing VSM
Digital tools and software bring a significant level of precision and ease to the VSM process, transforming traditional, often cumbersome manual mapping into a more fluid, interactive, and insightful practice. By using these technologies, organizations can:
- Automate Data Collection and Analysis: Automated tools can gather real-time data across various process stages, reducing errors associated with manual data entry and providing timely insights for faster decision-making.
- Enhance Visualization: Advanced visualization software helps in creating more detailed and understandable value stream maps that can be easily modified and shared across departments.
- Facilitate Collaboration: Cloud-based VSM tools enable teams, including remote members, to collaborate seamlessly, ensuring that updates and improvements are efficiently integrated and communicated.
Overview of Popular VSM Software
Several software tools have become popular among practitioners of value stream mapping in manufacturing and services due to their robust features and user-friendly interfaces. Notable examples include:
- Lucidchart: Known for its intuitive design and flexibility, Lucidchart supports extensive customization of VSM diagrams and facilitates collaboration among team members.
- Microsoft Visio: A powerful tool for creating detailed process maps that can be integrated with other Microsoft Office applications, enhancing the usability of the maps.
- Minitab Workspace: Offers specialized tools for VSM along with capabilities for statistical analysis, making it ideal for data-intensive environments.
- SmartDraw: Provides extensive templating for VSM, which simplifies the mapping process and is useful for those new to value stream mapping.

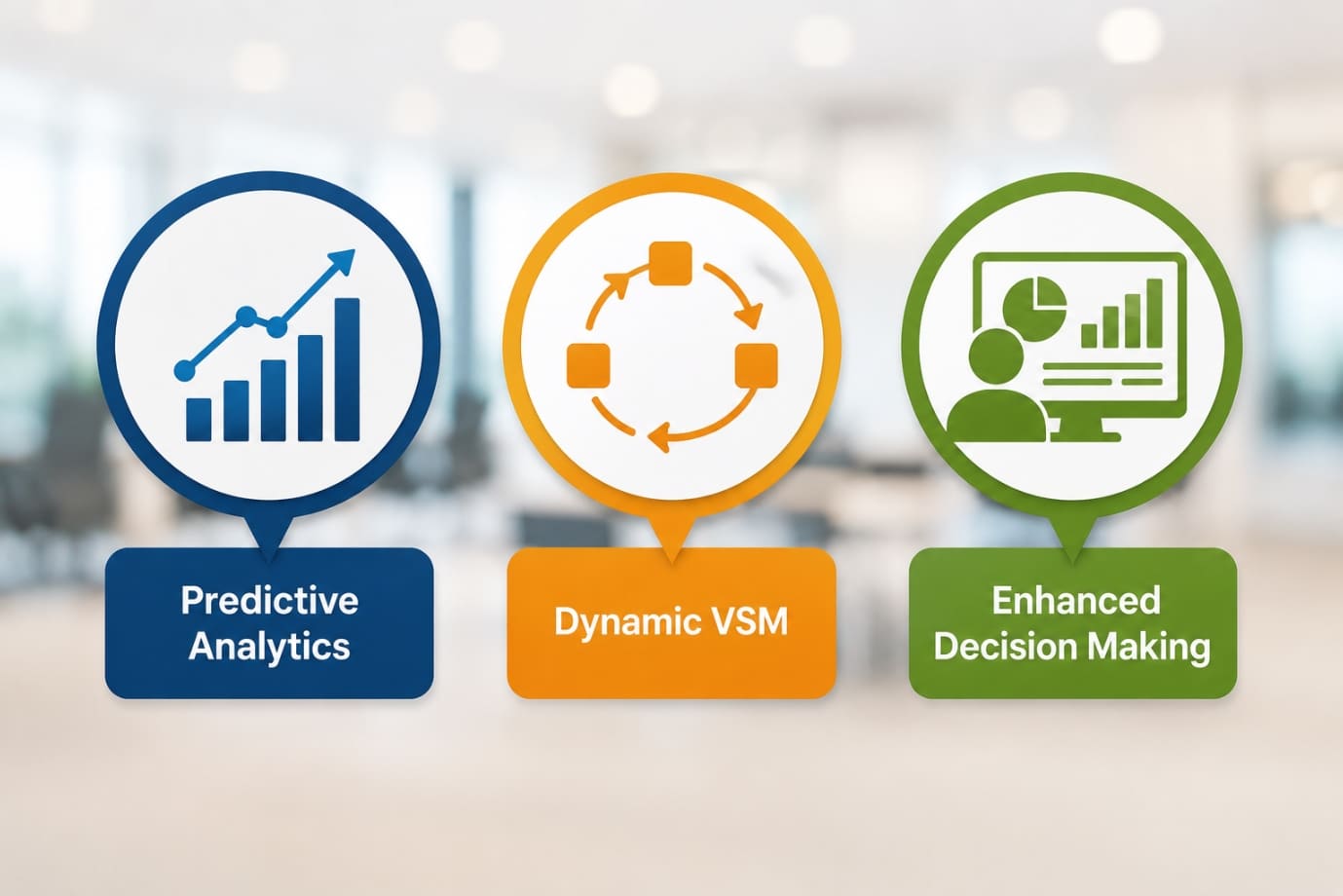

Future Trends in VSM Technology
Looking ahead, VSM technology is set to become even more sophisticated with the integration of AI and machine learning. These technologies promise to redefine VSM in several ways:
- Predictive Analytics: AI can analyze vast amounts of operational data to predict future bottlenecks and inefficiencies before they become significant issues.
- Dynamic VSM: Machine learning algorithms can help create dynamic value stream maps that adapt in real-time to changes in the process or demand, providing continuous improvement without human intervention.
- Enhanced Decision Making: AI-enhanced VSM software can provide recommendations for process optimization based on historical data trends and comparative analysis.
As VSM continues to incorporate these advanced technologies, organizations will be able to achieve higher levels of operational transparency and efficiency. These developments not only support the steps of VSM but also amplify it’s benefits, making it an even more powerful tool for businesses striving to optimize their workflows and enhance their competitive edge. Integrating technology into VSM methodology thus not only simplifies the mapping process but also turns value stream mapping into a strategic asset for continuous organizational improvement.
FAQs
A. Value Stream Mapping (VSM) is a tool used to visualize and analyze the flow of materials and information as they make their way through a process, helping to identify waste and opportunities for improvement.
A. Value Stream Mapping helps in identifying inefficiencies and waste within manufacturing processes, thereby enabling businesses to streamline operations and increase productivity.
A. The key steps of VSM include selecting a product or service, mapping the current state, analyzing it, designing a future state map, and developing an implementation plan.
A. The benefits of VSM include improved process efficiency, reduced waste, enhanced workflow understanding, and better alignment of processes with customer demands.
A. Effective VSM typically requires mapping software like Lucidchart or Microsoft Visio, data collection tools, and training materials for team education on VSM techniques.
A. A cross-functional team involving members from various departments such as operations, quality, logistics, and customer service should be involved to provide diverse insights.
A. VSM methodology facilitates continuous improvement by highlighting areas of waste and inefficiency, allowing for iterative adjustments to enhance process flows over time.
A. Common challenges include resistance to change, lack of clear objectives, and difficulties in data collection, all of which can be mitigated through strategic planning and stakeholder engagement.
A. Technology, especially digital tools and VSM software, can enhance Value Stream Mapping by automating data collection, improving visualization, and facilitating real-time collaboration.
A. Value Stream Mapping improves decision-making by providing a clear visual representation of the entire process flow, helping managers identify bottlenecks and make informed improvements.
A. Customer and supplier information is crucial in VSM as it helps in aligning the production and supply chain processes with the actual market demand and supply conditions.
Conclusion
In this comprehensive blog, we have delved deeply into Value Stream Mapping, highlighting its critical role in enhancing operational efficiency and minimizing waste across various sectors, with a particular focus on value stream mapping in manufacturing. We started by defining VSM and examining its essential components, including customer and supplier information, process activities, information flow, and material flow. The numerous benefits of VSM, such as identifying waste, improving process efficiencies, and deepening understanding of workflows, were also discussed to emphasize the transformative potential of this tool.
We walked through the steps of VSM, from selecting a product or service to mapping the current state and designing a future state that optimizes the value stream. The integration of advanced technology into VSM methodology was explored, underscoring how digital tools and software, particularly AI and machine learning, are refining the VSM process. Additionally, we addressed common challenges encountered during the implementation of value stream mapping, offering strategic solutions to overcome these obstacles and ensure the sustainability of improvements.
We strongly encourage you to start integrating VSM into your operations. Consider beginning with a pilot project where VSM principles can be applied. Assemble a cross-functional team and harness appropriate tools to leverage the comprehensive insights provided by value stream mapping. The benefits of VSM are both significant and long-lasting, making it an invaluable investment for any business looking to excel in a competitive environment.
By adopting VSM, you’re not just streamlining processes; you’re fostering a culture of continuous improvement and innovation within your organization. Embark on your value stream mapping journey today and experience the transformative effects on your operations and overall business success.
